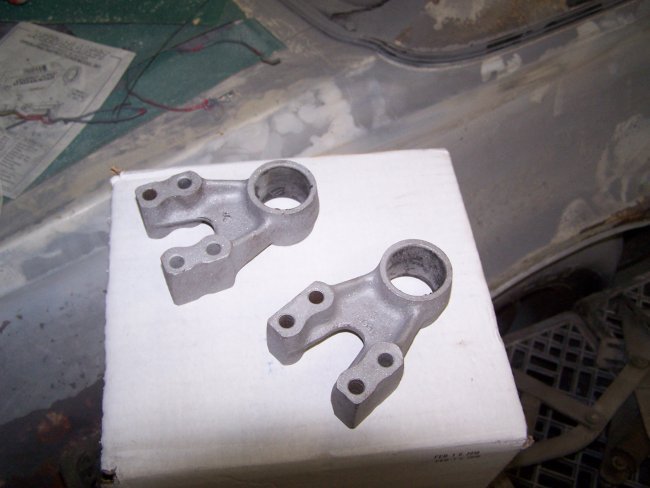

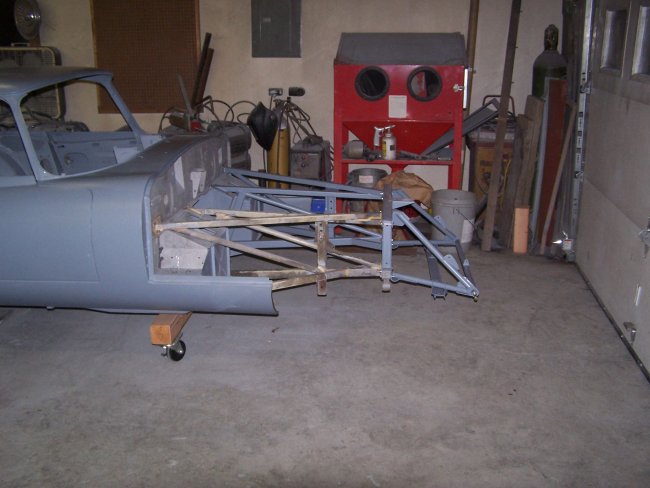

Then came the installation of the subframes, the picture frame and the bonent support frame. To prevent damaging the picture frame I had to install the lower A-arm front brackets (shown above). They are inserted into pockets inside the picture frame. If is installed the bonnet support frame without them, the pockets would have been deformed when I tightened the hardware.
As you can see in the pictures one of the engine subframes has not been primed. I need to buy a new subframe for the right side. The original one was split at a joint in the front where someone had jacked the car up. There was also a rust hole by the pciture frame. E-type engine subframes can not be repaired. They are running about $1200 per side right now. At least the left side was perfect.

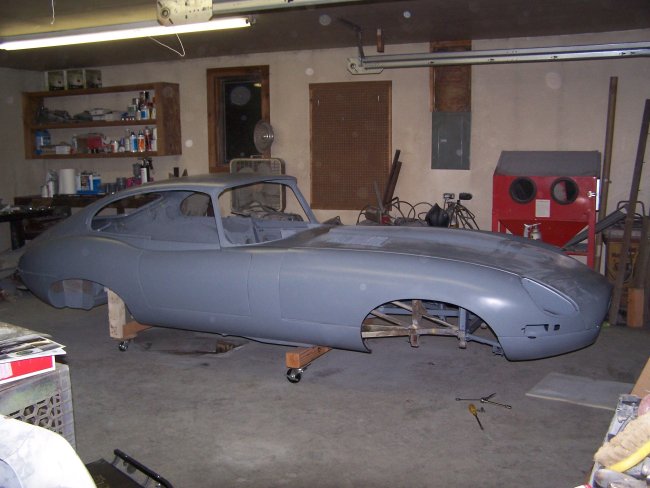

With the bonnet install it really looks like a car again. Unfortunately it all has to come apart prior to painting. The body also has to go back on the rotisserie to paint the underside. Once that is done the rotisserie has to be modified so that the interior can be painted. I hope to paint it in July. Let's see if I make it.
