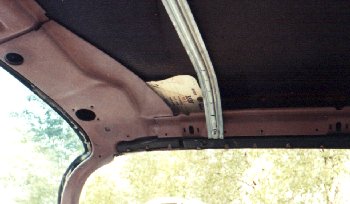

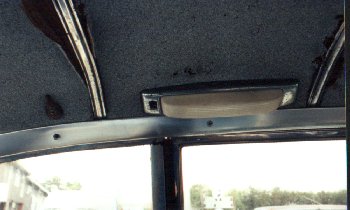

Here's a shot of the headliner. The headliner material is a painted foam material, which is
glued to a cardboard backer. It is badly deteriorated. I have yet to find a manufacturer of
this material.
|
|
When I removed the headliner I was suprised to find this body welding checklist. View of
side 1 and side 2 (Use the "Back"
button in your browser to return).
|
|

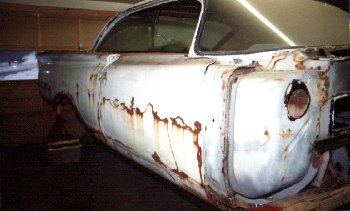

Here is a view of the shell after it was removed and fully dismantled. It would have been nice
to have a car rotisserie at this point. You can see the extensive rust damage to the rear quarter.
|
|

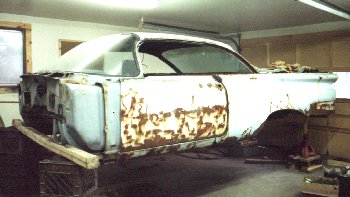

Here's the other side. You can see that the thin coat of cheap spray primer didn't protect
much for long.
|
|

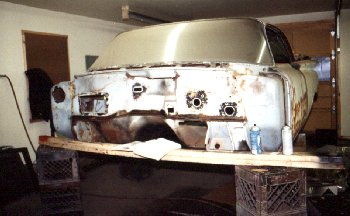

This firewall pictures shows the areas that the factory had undercoated.
|
|

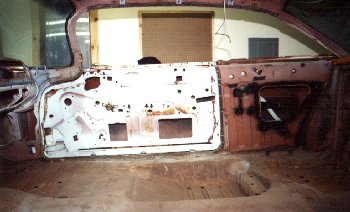

This interior picture of the shell shows that the door was fully painted the exterior
color while the interior was left in its primered state.
|
|

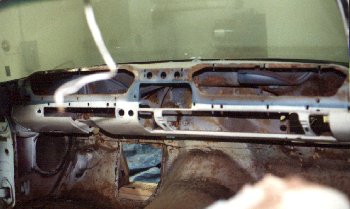

Here's the dismantled dash area. The top color was a special blue paint that was
made to resemble vinyl. While the bottom half was painted white.
|
